Rotary Encoder Pot With Threading

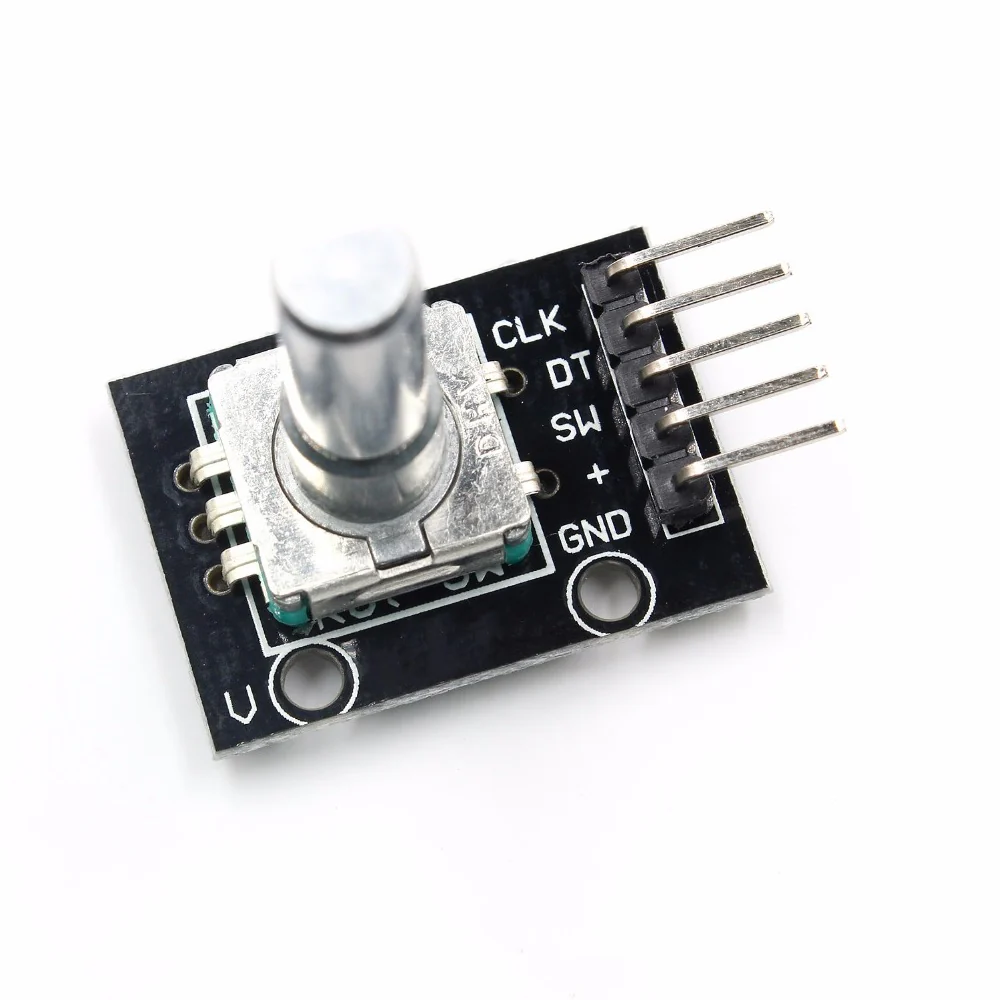

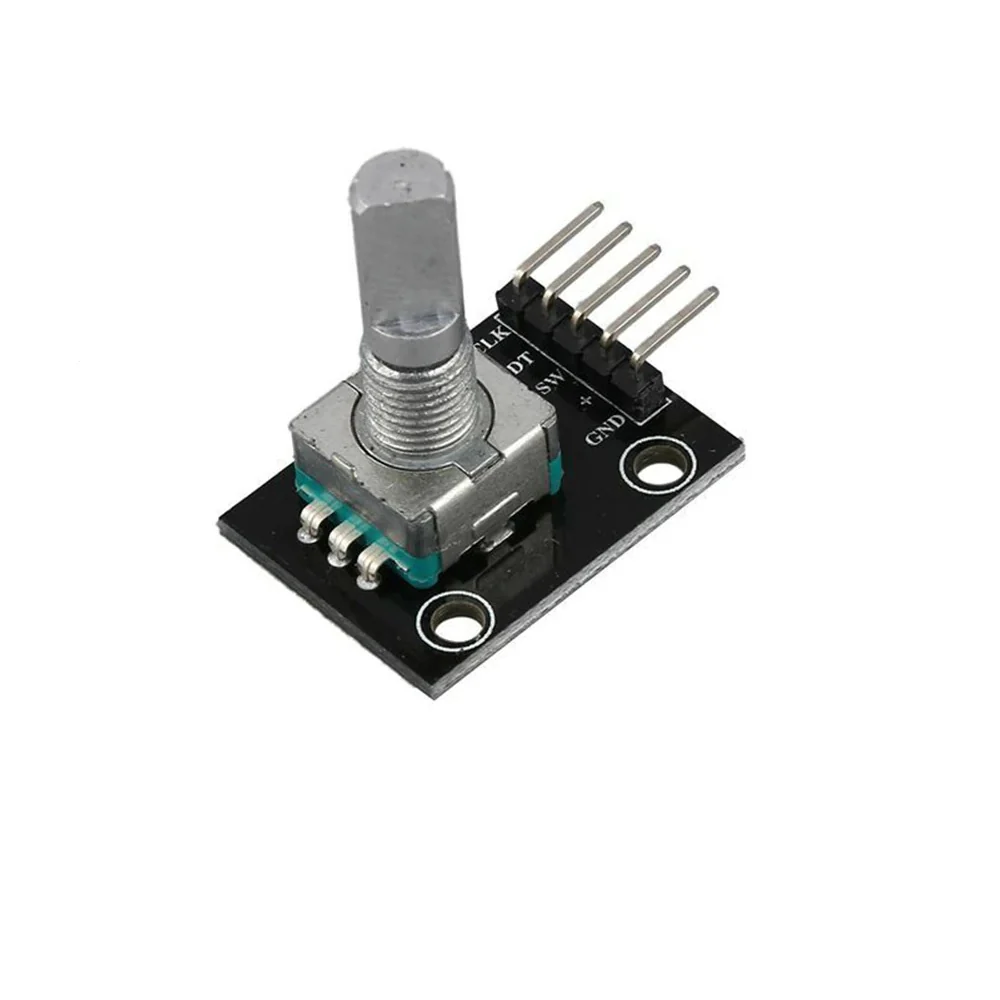

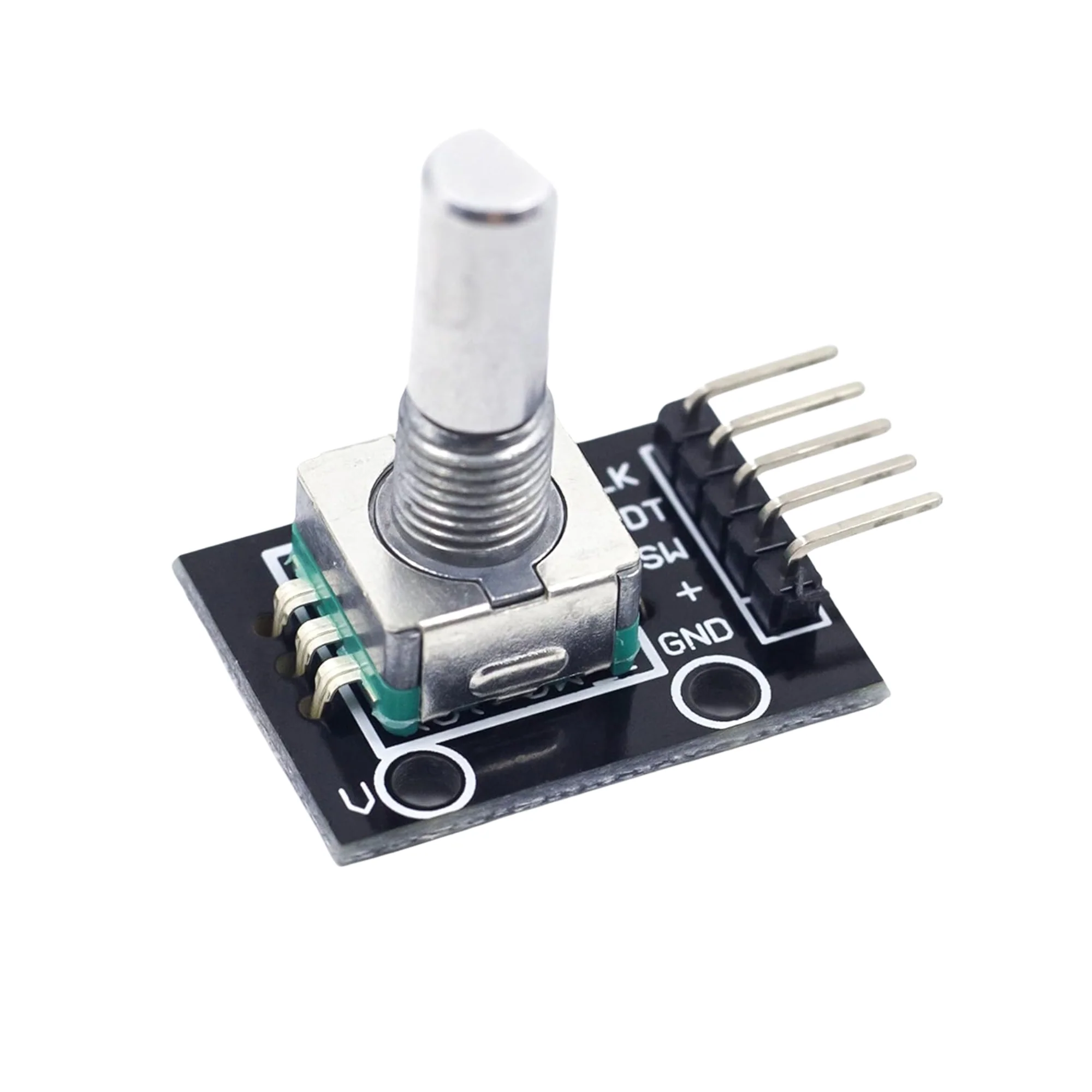

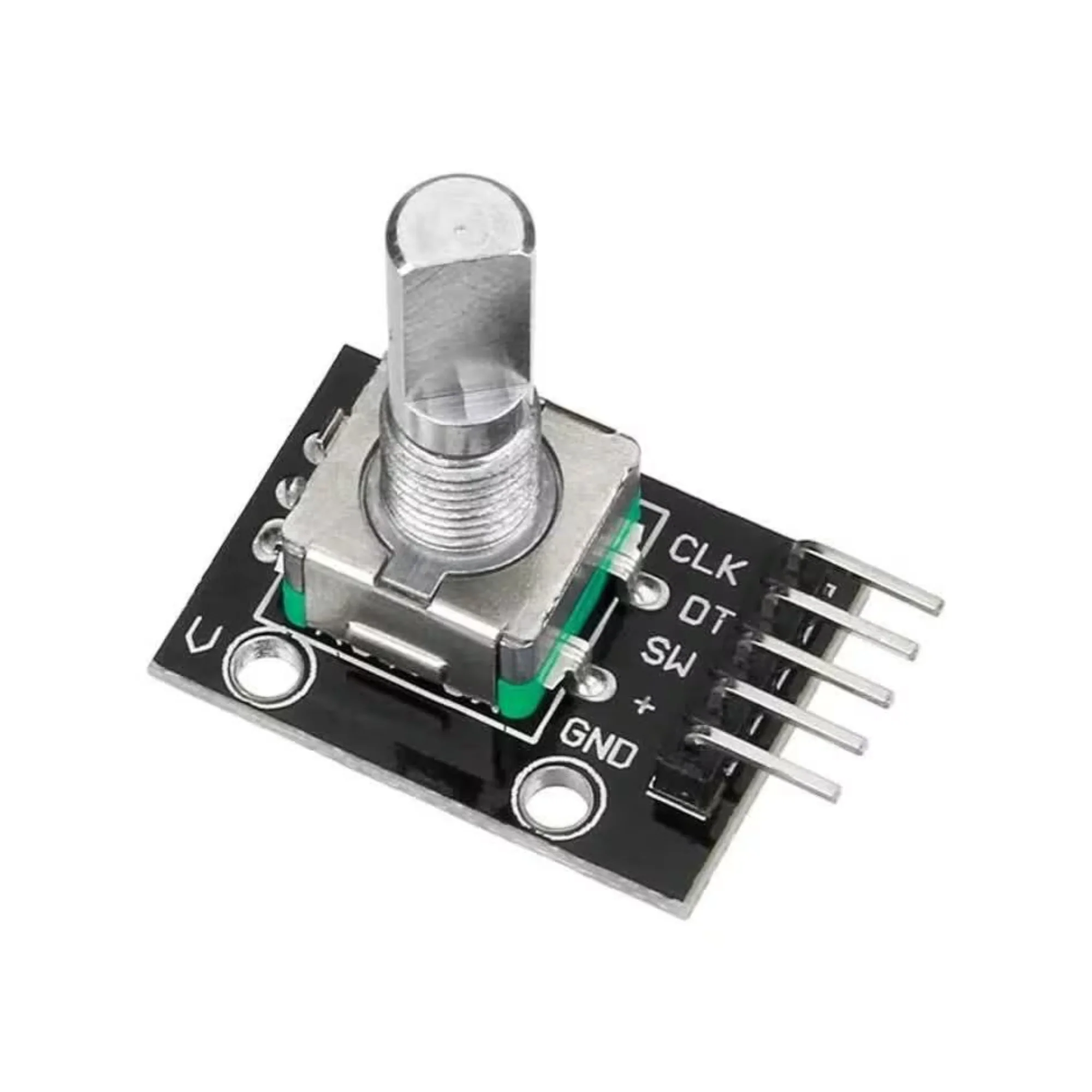

The Rotary Encoder Pot with Threading is a compact rotary input module that combines a mechanical rotary encoder with a threaded shaft for secure panel mounting. It generates digital pulse signals when the knob is rotated, allowing precise detection of rotation direction and steps. Unlike traditional potentiometers, it does not measure absolute position but instead provides incremental rotation data, making it ideal for menu navigation, parameter adjustment, and user interface control in embedded systems.

Technical Specifications:

Encoder Type: Incremental rotary encoder
Output Signals: CLK (A), DT (B), SW (Push button)
Operating Voltage: 3.3 V – 5 V DC
Interface: Digital output
Detents: Typically 20 steps per revolution
Shaft Type: Threaded metal shaft
Mounting: Panel mount with nut and washer
Switch Function: Integrated push-button
Pin Configuration: CLK, DT, SW, VCC, GND
Board Type: Encoder mounted on breakout PCB

Features:

Incremental rotary encoder for precise control
Threaded shaft for firm panel installation
Integrated push-button switch
Long mechanical life and durability
Compatible with Arduino, ESP32, ESP8266, Raspberry Pi
Compact PCB with clearly labeled pins
Ideal replacement for potentiometers in digital systems

Applications:

Menu navigation and user input devices
Volume, brightness, and parameter control
CNC controllers and control panels
Audio equipment and DIY controllers
Robotics and embedded systems
Human-machine interface (HMI) projects
Educational and prototyping projects
