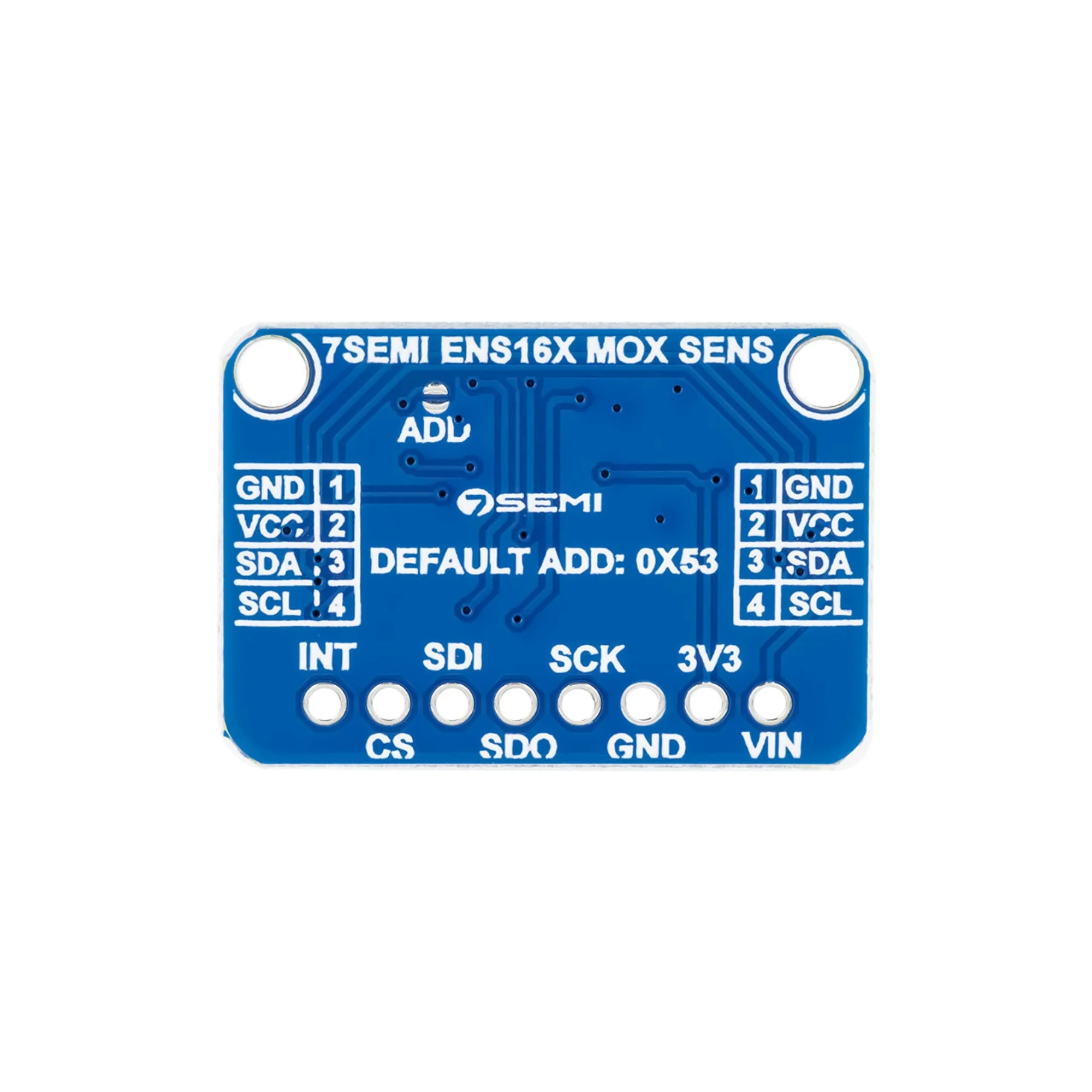

7Semi ENS160 Air Quality Sensor Breakout

The 7Semi ENS160 Air Quality Sensor Breakout is a compact, high-performance indoor air-quality sensing module based on the ScioSense ENS160 sensor. It provides digital measurements including equivalent CO₂ (eCO₂), total volatile organic compounds (TVOC), and Air Quality Index (AQI). With built-in algorithms for environmental compensation and air-quality conversion, this module offers accurate, ready-to-use air-quality data. It is ideal for smart-home systems, IoT devices, air purifiers, HVAC automation, and indoor environmental monitoring.

Technical Specifications:

• Sensor IC: ScioSense ENS160

• Measurement Outputs: eCO₂, TVOC, AQI

• Gas Type: MOX multi-gas sensor (detects VOCs, VSCs, oxidizing gases)

• Interface: I²C (SPI supported by sensor)

• Operating Voltage: VDD 1.71–1.98V, VDDIO 1.71–3.6V (typically 3.3V)

• eCO₂ Range: 400 ppm to 65,000 ppm

• TVOC Range: 0 ppb to 65,000 ppb

• Operating Temperature: -40°C to +85°C

• Operating Humidity: 5% RH to 95% RH (non-condensing)

• Sensor Type: Metal-Oxide (MOX) with internal heater control

• Data Processing: On-chip compensation and air-quality algorithms

• Output Type: Digital processed output

• Compatibility: Arduino, ESP32, STM32, Raspberry Pi, and other MCUs

Features:

• Multi-parameter air quality sensing: eCO₂, TVOC, and AQI

• TrueVOC MOX technology for wide-range VOC detection

• Built-in environmental and humidity/temperature compensation

• On-chip gas measurement algorithms reduce MCU load

• Wide operating range suitable for home, industrial, and commercial use

• Supports I²C for simple communication

• Compact breakout ideal for embedded and portable devices

• Fast response and stable long-term performance

• Detects a broad range of indoor pollutants and gases

• Optimized for indoor air quality monitoring and smart-building applications

Applications:

• Indoor air quality monitoring

• Air purifiers and filtration systems

• HVAC automation and ventilation control

• Smart home and IoT environmental devices

• Portable air-quality monitors

• Building automation and smart offices

• Industrial and workplace environmental safety

• Research and environmental data logging

• Classroom and indoor public-space air monitoring

• Consumer electronics for air-quality feedback
